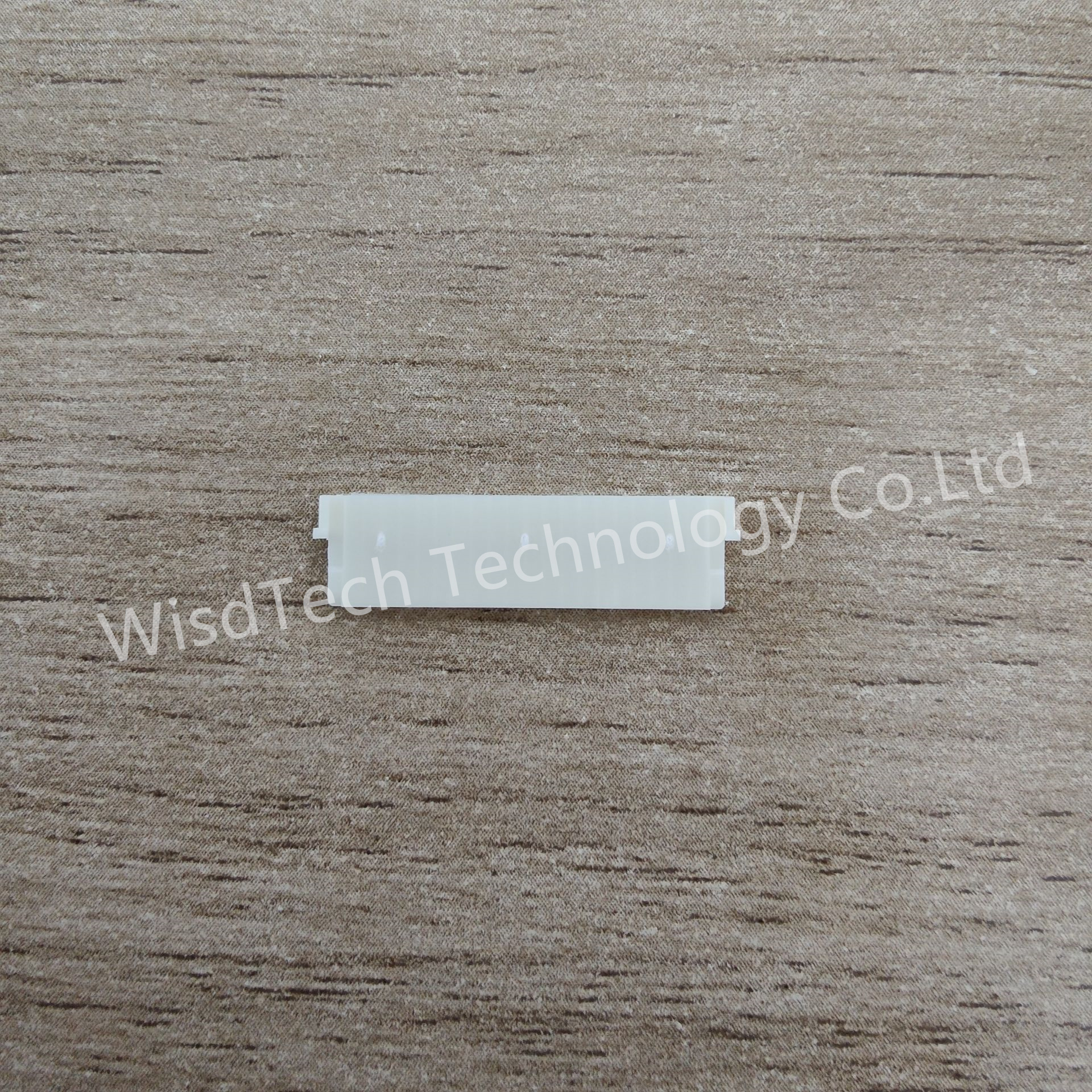

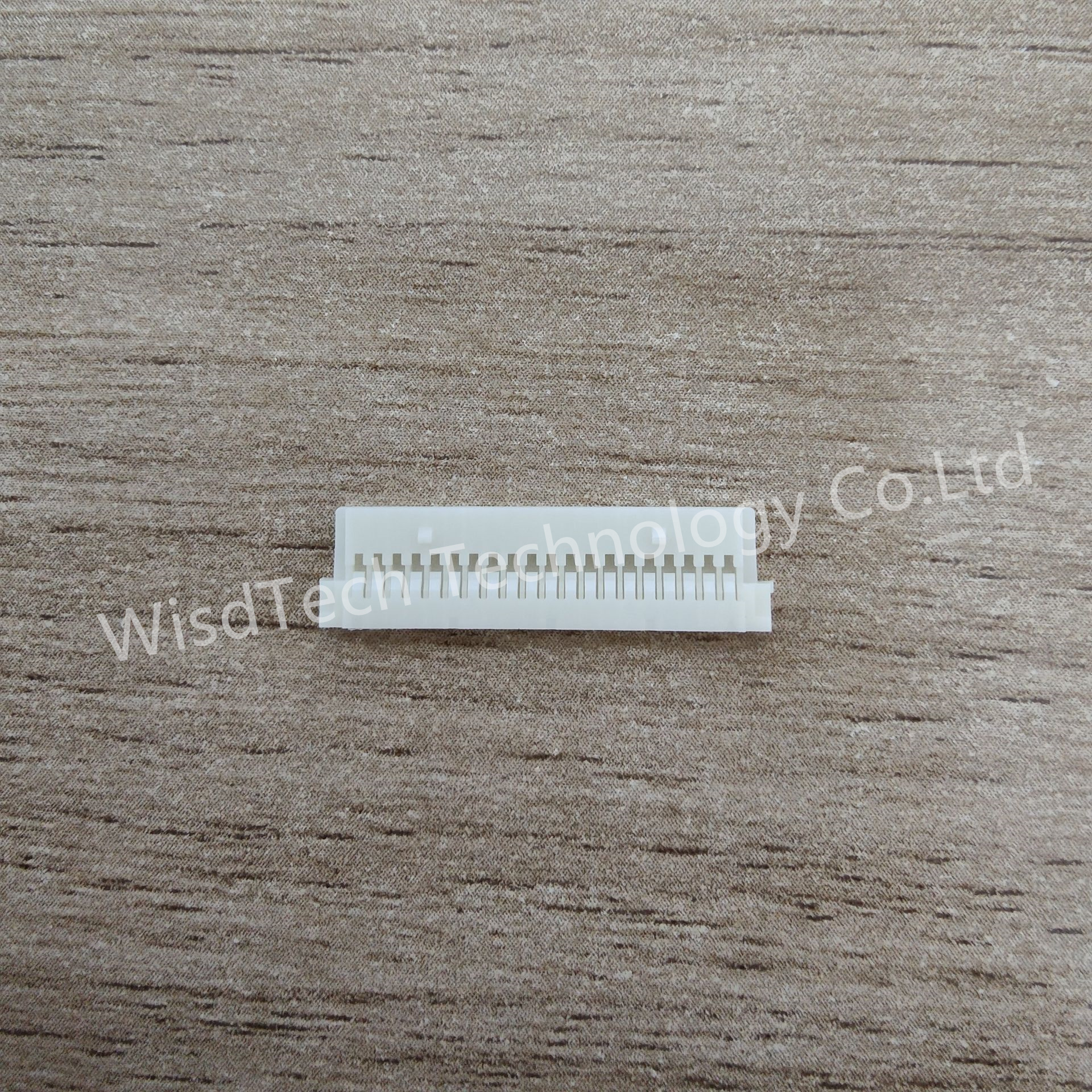

DF19-20S-1C Headers Wire Housings 20P PLUG TOP BRD MNT NO GROUNDING PLATE Connector
| Hirose Electric |
| Product Category: | Headers & Wire Housings |
| RoHS: | |
| Headers |
| Socket |
| 20 Position |
| 1 mm (0.039 in) |
| 1 Row |
| Cable Mount / Free Hanging |
| Crimp |
| Pin (Male) |
| Gold |
| DF19 |
| - 35 C |
| + 85 C |
| Bulk |
| Brand: | Hirose Connector |
| Contact Material: | Phosphor Bronze |
| Housing Color: | Brown (Beige) |
| Housing Material: | Polyamide (PA) |
| Insulation Resistance: | 500 MOhms |
| Product Type: | Headers & Wire Housings |
| Subcategory: | Headers & Wire Housings |
| Voltage Rating: | 100 V |
| Part # Aliases: | 685-0011-6-00 |
| Unit Weight: | 0.004868 oz |
Features
1. De Facto Standard for LCDPanel Connection
DF19 has been accepted as the market standardfor LCD panels (12in. or less) due to its highperformance for LVD high speed differentialsignals.

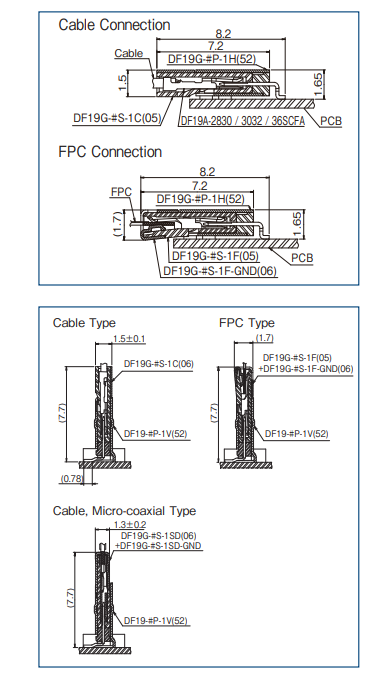

2. Low Profile Design
Cable, micro-coaxial type : 1.5mm thickness(1.6mm Max.)
FPC Type : 1.7mm Max.
3. Common Header
Header is compatible with the 3 socket types(discrete wire, FPC and micro-coaxial types), fora wide selection of mating combinations.
4. Uniform External Dimensions
External dimensions of each socket type are thesame and can be used in a wide array ofapplications.
5. Wide Varieties
Header is available in top-board, offset, reversemount offset and vertical mounted styles to meeta wide array of application needs.
6. Ground Connection withOuter Shell
Metal shell enables ground connection.
7. Glow Wire Compatible
(IEC60695-2-11 Standard)
Applications
Mobile phones, LCD connections, DVC, DSC, PDA, camera modules, and other small equipment
